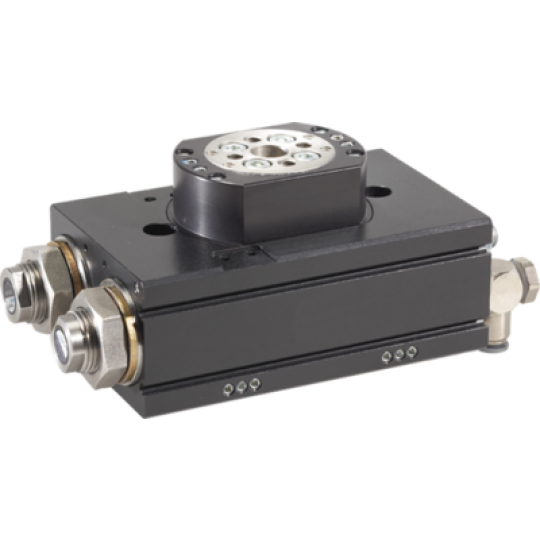

csm SOM BIL BAU SF50N C SALL AIN V4 b261b87bb2 v2

Terug

SF-C Serie

-De sterkste zwenkeenheid

-Tot 100% krachtiger

-Grote middenboring

-Geïntegreerde stootdempers

-Pneumatiek-doorvoer mogelijk

-Ook met middenpositie mogelijk

-Tot 10 miljoen slagen onderhoudsvrij

SF50D4-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF50-90D4-C	PDF	1.5 [Nm]	90 [°]	3 [°]
SF50-180D4-C	PDF	0.3 [Nm] 1.5 [Nm]	180 [°]	-
SF50D4-C	PDF	1.5 [Nm]	0-180 [°]	180 [°]

SF50ML-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF50ML-C	PDF	2.4 [Nm]	-90 / 0 / +90 [°]	3 [°]

SF50MLD4-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF50MLD4-C	PDF	1.5 [Nm]	-90 / 0 / +90 [°]	3 [°]

SF50N-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF50-90N-C	PDF	2.4 [Nm]	90 [°]	3 [°]
SF50-180N-C	PDF	2.4 [Nm]	180 [°]	3 [°]
SF50N-C	PDF	2.4 [Nm]	0-180 [°]	180 [°]

SF74D4-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF74-90D4-C	PDF	5.5 [Nm]	90 [°]	3 [°]
SF74-180D4-C	PDF	5.5 [Nm]	180 [°]	3 [°]
SF74D4-C	PDF	5.5 [Nm]	0-180 [°]	180 [°]

SF74D6-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF74-90D6-C	PDF	4.5 [Nm]	90 [°]	3 [°]
SF74-180D6-C	PDF	4.5 [Nm]	180 [°]	3 [°]
SF74D6-C	PDF	4.5 [Nm]	0-180 [°]	180 [°]

SF74MLD6-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF74MLD6-C	PDF	4.5 [Nm]	-90 / 0 / +90 [°]	3 [°]

SF74N-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF74-90N-C	PDF	7.3 [Nm]	90 [°]	3 [°]
SF74-180N-C	PDF	7.3 [Nm]	180 [°]	3 [°]
SF74N-C	PDF	7.3 [Nm]	0-180 [°]	180 [°]

SF100D4-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF100-90D4-C	PDF	15 [Nm]	90 [°]	3 [°]
SF100-180D4-C	PDF	15 [Nm]	180 [°]	3 [°]
SF100D4-C	PDF	15 [Nm]	0-180 [°]	180 [°]

SF100D6-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF100-90D6-C	PDF	13 [Nm]	90 [°]	3 [°]
SF100-180D6-C	PDF	13 [Nm]	180 [°]	3 [°]
SF100D6-C	PDF	13 [Nm]	0-180 [°]	180 [°]

SF100ML-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF100ML-C	PDF	20 [Nm]	-90 / 0 / +90 [°]	3 [°]

SF100MLD4-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF100MLD4-C	PDF	15 [Nm]	-90 / 0 / +90 [°]	3 [°]

SF100MLD6-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF100MLD6-C	PDF	13 [Nm]	-90 / 0 / +90 [°]	3 [°]

SF100N-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF100-90N-C	PDF	20 [Nm]	90 [°]	3 [°]
SF100-180N-C	PDF	20 [Nm]	180 [°]	3 [°]
SF100N-C	PDF	20 [Nm]	0-180 [°]	180 [°]

SF125D4-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF125-90D4-C	PDF	34 [Nm]	90 [°]	3 [°]
SF125-180D4-C	PDF	34 [Nm]	180 [°]	3 [°]
SF125D4-C	PDF	34 [Nm]	0-180 [°]	180 [°]

SF125D8-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF125-90D8-C	PDF	32 [Nm]	90 [°]	3 [°]
SF125-180D8-C	PDF	32 [Nm]	180 [°]	3 [°]
SF125D8-C	PDF	32 [Nm]	0-180 [°]	180 [°]

SF125M-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF125M-C	PDF	38 [N]	-90 / 0 / +90 [°]	3 [°]

SF125MD4-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF125MD4-C	PDF	34 [Nm]	-90 / 0 / +90 [°]	3 [°]

SF125MD8-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF125MD8-C	PDF	32 [Nm]	-90 / 0 / +90 [°]	3 [°]

SF125N-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF125-90N-C	PDF	38 [Nm]	90 [°]	3 [°]
SF125-180N-C	PDF	38 [Nm]	180 [°]	3 [°]
SF125N-C	PDF	38 [Nm]	0-180 [°]	180 [°]

SF155D4-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF155-90D4-C	PDF	58 [Nm]	90 [°]	3 [°]
SF155-180D4-C	PDF	58 [Nm]	180 [°]	3 [°]
SF155D4-C	PDF	58 [Nm]	0-180 [°]	180 [°]

SF155D8-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF155-90D8-C	PDF	54 [Nm]	90 [°]	3 [°]
SF155-180D8-C	PDF	54 [Nm]	180 [°]	3 [°]
SF155D8-C	PDF	54 [Nm]	0-180 [°]	180 [°]

SF155M-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF155M-C	PDF	62 [Nm]	-90 / 0 / +90 [°]	3 [°]

SF155MD4-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF155MD4-C	PDF	58 [Nm]	-90 / 0 / +90 [°]	3 [°]

SF155MD8-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF155MD8-C	PDF	54 [Nm]	-90 / 0 / +90 [°]	3 [°]

SF155N-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF155-90N-C	PDF	62 [Nm]	90 [°]	3 [°]
SF155-180N-C	PDF	62 [Nm]	180 [°]	3 [°]
SF155N-C	PDF	62 [Nm]	0-180 [°]	180 [°]

SF195D4-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF195-90D4-C	PDF	125 [Nm]	90 [°]	3 [°]
SF195-180D4-C	PDF	125 [Nm]	180 [°]	3 [°]
SF195D4-C	PDF	125 [Nm]	0-180 [°]	180 [°]

SF195D8-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF195-90D8-C	PDF	120 [Nm]	90 [°]	3 [°]
SF195-180D8-C	PDF	120 [Nm]	180 [°]	3 [°]
SF195D8-C	PDF	120 [Nm]	0-180 [°]	180 [°]

SF195M-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF195M-C	PDF	130 [Nm]	-90 / 0 / +90 [°]	3 [°]

SF195MD4-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF195MD4-C	PDF	125 [Nm]	-90 / 0 / +90 [°]	3 [°]

SF195MD8-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF195MD8-C	PDF	120 [Nm]	-90 / 0 / +90 [°]	3 [°]

SF195N-C

Artikelcode	Download	Torque	Swivel angle	Swivel angle regulable +/-
SF195-90N-C	PDF	130 [Nm]	90 [°]	3 [°]
SF195-180N-C	PDF	130 [Nm]	180 [°]	3 [°]
SF195N-C	PDF	130 [Nm]	0-180 [°]	180 [°]
