Hybride grijpers

Series

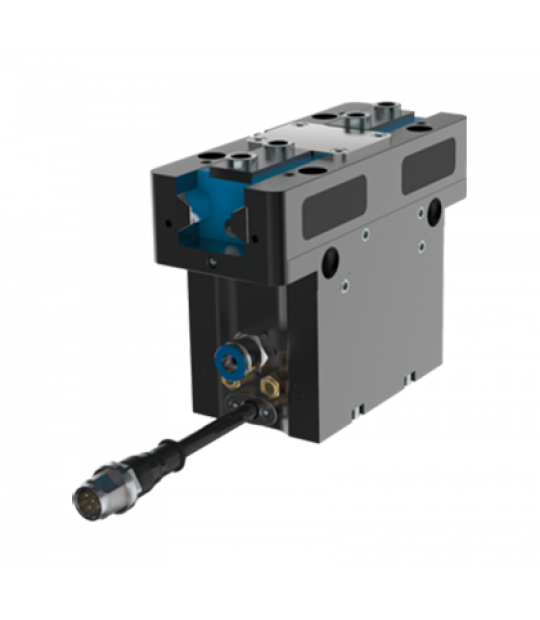

GPD5000iL Serie

GPD5000iL-serie

-Pneumatisch met IO-Link-technologie

-Geïntegreerde ventielen

-Sneller en zuiniger

-Productherkenning op ±0,05mm

-ip64-afgedicht

-Tot 30 miljoen slagen onderhoudsvrij

Overzicht

Hieronder vindt u meer specificaties

Type Bestel-code Stroke per jaw Current consumption max. Repetition accuracy +/-
GPD5006IL GPD5006N-IL-10-A 6 [mm] 0.1 [A] 0.01 [mm]
GPD5006NC-IL-10-A 6 [mm] 0.1 [A] 0.01 [mm]
GPD5006NO-IL-10-A 6 [mm] 0.1 [A] 0.01 [mm]
GPD5006S-IL-10-A 3 [mm] 0.1 [A] 0.01 [mm]
GPD5006SC-IL-10-A 3 [mm] 0.1 [A] 0.01 [mm]
GPD5006SO-IL-10-A 3 [mm] 0.1 [A] 0.01 [mm]
GPD5008IL GPD5008N-IL-10-A 8 [mm] 0.1 [A] 0.01 [mm]
GPD5008NC-IL-10-A 8 [mm] 0.1 [A] 0.01 [mm]
GPD5008NO-IL-10-A 8 [mm] 0.1 [A] 0.01 [mm]
GPD5008S-IL-10-A 4 [mm] 0.1 [A] 0.01 [mm]
GPD5008SC-IL-10-A 4 [mm] 0.1 [A] 0.01 [mm]
GPD5008SO-IL-10-A 4 [mm] 0.1 [A] 0.01 [mm]
GPD5010IL GPD5010N-IL-10-A 10 [mm] 0.1 [A] 0.01 [mm]
GPD5010NC-IL-10-A 10 [mm] 0.1 [A] 0.01 [mm]
GPD5010NO-IL-10-A 10 [mm] 0.1 [A] 0.01 [mm]
GPD5010S-IL-10-A 5 [mm] 0.1 [A] 0.01 [mm]
GPD5010SC-IL-10-A 5 [mm] 0.1 [A] 0.01 [mm]
GPD5010SO-IL-10-A 5 [mm] 0.1 [A] 0.01 [mm]

Contact

Wilt u meer informatie van dit product? Wij sturen u dit op!

Ik wil meer informatie over "GPD5000iL Serie"
Of neem direct contact op:
Mierlo
+31 (0)492-665176
Zwolle
+31 (0)38-4541017
België
+32 (0)9-2779679

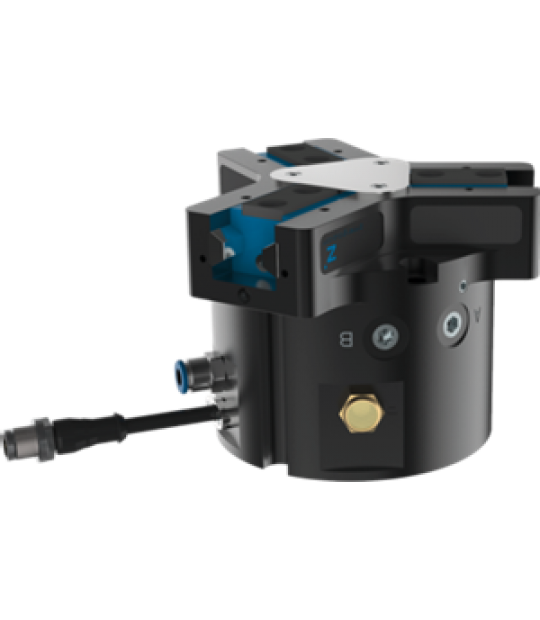

GPP5000iL Serie

GPP5000iL-serie

-Pneumatisch met IO-Link-technologie

-Geïntegreerde ventielen

-Sneller en zuiniger

-Productherkenning op ±0,05mm

-ip64-afgedicht

-Tot 30 miljoen slagen onderhoudsvrij

Overzicht

Hieronder vindt u meer specificaties

Type Bestel-code Stroke per jaw Current consumption max. Repetition accuracy +/-
GPP5006IL GPP5006N-IL-10-A 6 [mm] 0.1 [A] 0.01 [mm]
GPP5006NC-IL-10-A 6 [mm] 0.1 [A] 0.01 [mm]
GPP5006NO-IL-10-A 6 [mm] 0.1 [A] 0.01 [mm]
GPP5006S-IL-10-A 3 [mm] 0.1 [A] 0.01 [mm]
GPP5006SC-IL-10-A 3 [mm] 0.1 [A] 0.01 [mm]
GPP5006SO-IL-10-A 3 [mm] 0.1 [A] 0.01 [mm]
GPP5008IL GPP5008N-IL-10-A 8 [mm] 0.1 [A] 0.01 [mm]
GPP5008NC-IL-10-A 8 [mm] 0.1 [A] 0.01 [mm]
GPP5008NO-IL-10-A 8 [mm] 0.1 [A] 0.01 [mm]
GPP5008S-IL-10-A 4 [mm] 0.1 [A] 0.01 [mm]
GPP5008SC-IL-10-A 4 [mm] 0.1 [A] 0.01 [mm]
GPP5008SO-IL-10-A 4 [mm] 0.1 [A] 0.01 [mm]
GPP5010IL GPP5010N-IL-10-A 10 [mm] 0.1 [A] 0.01 [mm]
GPP5010NC-IL-10-A 10 [mm] 0.1 [A] 0.01 [mm]
GPP5010NO-IL-10-A 10 [mm] 0.1 [A] 0.01 [mm]
GPP5010S-IL-10-A 5 [mm] 0.1 [A] 0.01 [mm]
GPP5010SC-IL-10-A 5 [mm] 0.1 [A] 0.01 [mm]
GPP5010SO-IL-10-A 5 [mm] 0.1 [A] 0.01 [mm]
