BasicStop

Series

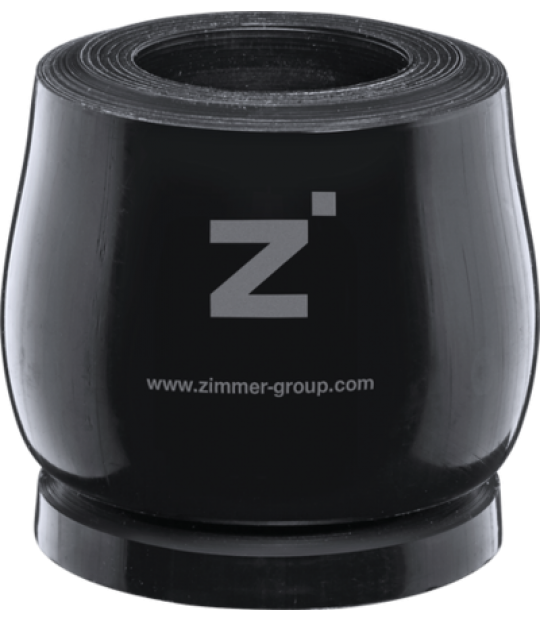

Axial Standard

Axial Standard-serie

-Hoogwaardig kunststof TPC

-Hoge slijtvastheid en bestendigheid

-Geen uitharding of decompositie

-Temperatuurbestendig

-Grote demping en energie-opname

-Lange levensduur

-Volledig recyclebaar

Overzicht

Hieronder vindt u meer specificaties

Type Bestel-code Maximum energy capacity per cycle for continuous operation Maximum energy per cycle in emergency stop situation Stroke max.
Axial Standard Hard TPC-AS101X116H 2014 [Nm] 2951 [Nm] 47 [mm]
TPC-AS11X12H 2 [Nm] 3 [Nm] 5 [mm]
TPC-AS16X17H 6 [Nm] 9 [Nm] 6 [mm]
TPC-AS19X20H 10 [Nm] 16 [Nm] 9 [mm]
TPC-AS19X22H 11.5 [Nm] 21 [Nm] 9 [mm]
TPC-AS26X28H 29 [Nm] 46 [Nm] 12 [mm]
TPC-AS30X34H 48 [Nm] 87 [Nm] 14 [mm]
TPC-AS33X37H 65 [Nm] 112 [Nm] 16 [mm]
TPC-AS35X39H 82 [Nm] 130 [Nm] 16 [mm]

Contact

Wilt u meer informatie van dit product? Wij sturen u dit op!

Ik wil meer informatie over "Axial Standard"
Of neem direct contact op:
Mierlo
+31 (0)492-665176
Zwolle
+31 (0)38-4541017
België
+32 (0)9-2779679

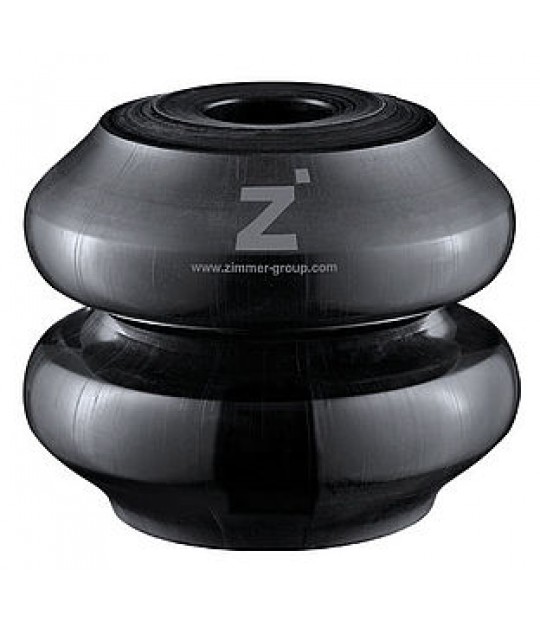

Axial Advanced

Axial Advanced-serie

-Hoogwaardig kunststof TPC

-Hoge slijtvastheid en bestendigheid

-Geen uitharding of decompositie

-Temperatuurbestendig

-Grote demping en energie-opname

-Lange levensduur

-Volledig recyclebaar

Overzicht

Hieronder vindt u meer specificaties

Type Bestel-code Maximum energy capacity per cycle for continuous operation Maximum energy per cycle in emergency stop situation Stroke max.
Axial Advanced - Medium / Hard TPC-AA79X64M 450 [Nm] 13.500 [Nm] 62 [mm]
TPC-AA96X74M 980 [Nm] 29.400 [Nm] 75 [mm]
TPC-AA57X88M 1210 [Nm] 36.300 [Nm] 40 [mm]
TPC-AA68X88H 1640 [Nm] 49.200 [Nm] 49 [mm]
TPC-AA84X100M 1785 [Nm] 53.550 [Nm] 59 [mm]
TPC-AA53X108H 1900 [Nm] 57.000 [Nm] 30 [mm]
TPC-AA94X85M 1940 [Nm] 58.200 [Nm] 74 [mm]
TPC-AA98X102H 1970 [Nm] 59.100 [Nm] 63 [mm]
TPC-AA129X116M 3710 [Nm] 111.300 [Nm] 97 [mm]
TPC-AA106X136H 4250 [Nm] 127.500 [Nm] 65 [mm]
TPC-AA114X137M 6350 [Nm] 190.500 [Nm] 89 [mm]
TPC-AA224X152M 7260 [Nm] 217.800 [Nm] 176 [mm]
TPC-AA186X140M 7310 [Nm] 219.300 [Nm] 144 [mm]
TPC-AA118X146H 8330 [Nm] 249.900 [Nm] 67 [mm]
TPC-AA241X149M 8860 [Nm] 265.800 [Nm] 178 [mm]
TPC-AA166X168M 10100 [Nm] 303.000 [Nm] 124 [mm]
TPC-AA252X177M 12725 [Nm] 381.750 [Nm] 198 [mm]

Contact

Wilt u meer informatie van dit product? Wij sturen u dit op!

Ik wil meer informatie over "Axial Advanced"
Of neem direct contact op:
Mierlo
+31 (0)492-665176
Zwolle
+31 (0)38-4541017
België
+32 (0)9-2779679

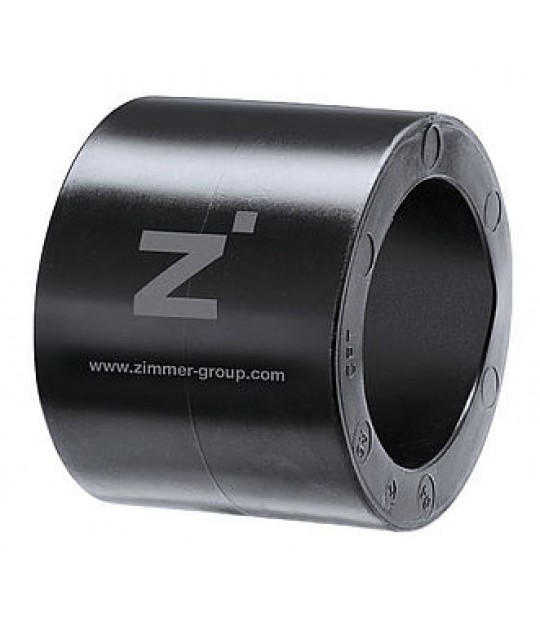

Radial Standard

Radial Standard-serie

-Hoogwaardig kunststof TPC

-Hoge slijtvastheid en bestendigheid

-Geen uitharding of decompositie

-Temperatuurbestendig

-Grote demping en energie-opname

-Lange levensduur

-Volledig recyclebaar

Overzicht

Hieronder vindt u meer specificaties

Type Bestel-code Maximum energy capacity per cycle for continuous operation Maximum energy per cycle in emergency stop situation Stroke max.
Radial Standard - Hard TPC-RS23X13H 2,7 [Nm] 81 [Nm] 15 [mm]
TPC-RS30X19H 6 [Nm] 180 [Nm] 19 [mm]
TPC-RS36X20H 8,7 [Nm] 261 [Nm] 23 [mm]
TPC-RS42X34H 11,7 [Nm] 351 [Nm] 32 [mm]
TPC-RS53X43H 25 [Nm] 750 [Nm] 41 [mm]
TPC-RS56X46H 66,5 [Nm] 1.995 [Nm] 37 [mm]
TPC-RS69X51H 124 [Nm] 3.720 [Nm] 45 [mm]
TPC-RS68X67H 158 [Nm] 4.740 [Nm] 46 [mm]
TPC-RS77X82H 228 [Nm] 6.840 [Nm] 50 [mm]
TPC-RS84X81H 290 [Nm] 8.700 [Nm] 56 [mm]
Radial Standard - Medium TPC-RS25X13M 1,2 [Nm] 36 [Nm] 17 [mm]
TPC-RS32X19M 2,3 [Nm] 69 [Nm] 21 [mm]
TPC-RS37X20M 3,5 [Nm] 105 [Nm] 25 [mm]
TPC-RS44X35M 5,8 [Nm] 174 [Nm] 34 [mm]
TPC-RS55X43M 12 [Nm] 360 [Nm] 43 [mm]
TPC-RS59X46M 23 [Nm] 690 [Nm] 40 [mm]
TPC-RS67X46M 34,5 [Nm] 1.035 [Nm] 46 [mm]
TPC-RS73X51M 45 [Nm] 1.350 [Nm] 50 [mm]
TPC-RS73X67M 68 [Nm] 2.040 [Nm] 50 [mm]
TPC-RS83X83M 92 [Nm] 2.760 [Nm] 57 [mm]
TPC-RS88X81M 115 [Nm] 3.450 [Nm] 60 [mm]
