Zwenkeenheden, Pneumatisch

Voor informatie over dit product kan u hieronder op de lees meer knop klikken. Mocht u vragen hebben kan u altijd contact met ons opnemen per e-mail of telefoon.

Series

MSF Serie

MSF-serie

-Zeer platte constructie

-Instelbare zwenkhoek

-3 montagevormen

-Pneumatiek-doorvoer mogelijk

-Geïntegreerde stootdempers

-Tot 10 miljoen slagen onderhoudsvrij

Overzicht

Hieronder vindt u meer specificaties

Type Bestel-code Swivel angle Torque Repeatability +/-
MSF34 MSF34N-D2 90-180 [°] 0.3 [Nm] 0.07 [°]
MSF34N-F001 90-180 [°] 0.4 [Nm] 0.07 [°]
MSF34N-F002 90-180 [°] 0.4 [Nm] 0.07 [°]
MSF34S-D2 90-180 [°] 0.3 [Nm] 0.01 [°]
MSF34S-F001 90-180 [°] 0.4 [Nm] 0.01 [°]
MSF34S-F002 90-180 [°] 0.4 [Nm] 0.01 [°]
MSF40 MSF40N-D2 90-180 [°] 0.6 [Nm] 0.07 [°]
MSF40N-F001 90-180 [°] 0.7 [Nm] 0.07 [°]
MSF40N-F002 90-180 [°] 0.7 [Nm] 0.07 [°]
MSF40S-D2 90-180 [°] 0.6 [Nm] 0.01 [°]
MSF40S-F001 90-180 [°] 0.7 [Nm] 0.01 [°]
MSF40S-F002 90-180 [°] 0.7 [Nm] 0.01 [°]
MSF44 MSF44N-D2 90-180 [°] 1 [Nm] 0.07 [°]
MSF44N-F001 90-180 [°] 1.2 [Nm] 0.07 [°]
MSF44N-F002 90-180 [°] 1.2 [Nm] 0.07 [°]
MSF44S-D2 90-180 [°] 1 [Nm] 0.01 [°]
MSF44S-F001 90-180 [°] 1.2 [Nm] 0.01 [°]
MSF44S-F002 90-180 [°] 1.2 [Nm] 0.01 [°]

Contact

Wilt u meer informatie van dit product? Wij sturen u dit op!

Ik wil meer informatie over "MSF Serie "
Of neem direct contact op:
Mierlo
+31 (0)492-665176
Zwolle
+31 (0)38-4541017
België
+32 (0)9-2779679

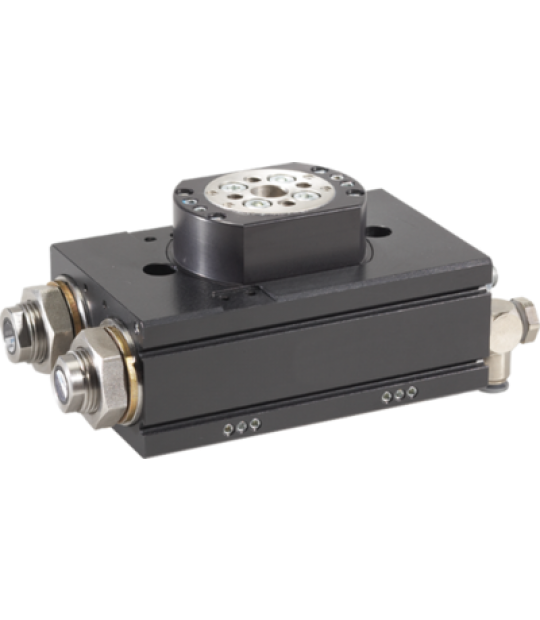

SF-C Serie

SF-C-serie

-De sterkste zwenkeenheid

-Tot 100% krachtiger

-Grote middenboring

-Geïntegreerde stootdempers

-Pneumatiek-doorvoer mogelijk

-Ook met middenpositie mogelijk

-Tot 10 miljoen slagen onderhoudsvrij

Overzicht

Hieronder vindt u meer specificaties

Type Bestel-code Swivel angle Swivel angle regulable +/- Torque
SF50N-C SF50-180N-C 180 [°] 3 [°] 2.4 [Nm]
SF50-90N-C 90 [°] 3 [°] 2.4 [Nm]
SF50N-C 0-180 [°] 180 [°] 2.4 [Nm]
SF50D4-C SF50-180D4-C 180 [°] 3 [°] 1.5 [Nm]
SF50-90D4-C 90 [°] 3 [°] 1.5 [Nm]
SF50D4-C 0-180 [°] 180 [°] 1.5 [Nm]
SF50ML-C SF50ML-C -90 / 0 / +90 [°] 3 [°] 2.4 [Nm]
SF50MLD4-C SF50MLD4-C -90 / 0 / +90 [°] 3 [°] 1.5 [Nm]
SF74N-C SF74-180N-C 180 [°] 3 [°] 7.3 [Nm]
SF74-90N-C 90 [°] 3 [°] 7.3 [Nm]
SF74N-C 0-180 [°] 180 [°] 7.3 [Nm]
SF74D4-C SF74-180D4-C 180 [°] 3 [°] 5.5 [Nm]
SF74-90D4-C 90 [°] 3 [°] 5.5 [Nm]
SF74D4-C 0-180 [°] 180 [°] 5.5 [Nm]
SF74D6-C SF74-180D6-C 180 [°] 3 [°] 4.5 [Nm]
SF74-90D6-C 90 [°] 3 [°] 4.5 [Nm]
SF74D6-C 0-180 [°] 180 [°] 4.5 [Nm]
SF74ML-C SF74ML-C -90 / 0 / +90 [°] 3 [°] 7.3 [Nm]
SF74MLD4-C SF74MLD4-C -90 / 0 / +90 [°] 3 [°] 5.5 [Nm]
SF74MLD6-C SF74MLD6-C -90 / 0 / +90 [°] 3 [°] 4.5 [Nm]
SF100N-C SF100-180N-C 180 [°] 3 [°] 20 [Nm]
SF100-90N-C 90 [°] 3 [°] 20 [Nm]
SF100N-C 0-180 [°] 180 [°] 20 [Nm]
SF100D4-C SF100-180D4-C 180 [°] 3 [°] 15 [Nm]
SF100-90D4-C 90 [°] 3 [°] 15 [Nm]
SF100D4-C 0-180 [°] 180 [°] 15 [Nm]
SF100D6-C SF100D6-C 180 [°] 3 [°] 13 [Nm]
SF100-90D6-C 90 [°] 3 [°] 13 [Nm]
SF100D6-C 0-180 [°] 180 [°] 13 [Nm]
SF100ML-C SF100ML-C -90 / 0 / +90 [°] 3 [°] 20 [Nm]
SF100MLD4-C SF100MLD4-C -90 / 0 / +90 [°] 3 [°] 15 [Nm]
SF100MLD6-C SF100MLD6-C -90 / 0 / +90 [°] 3 [°] 13 [Nm]
SF125N-C SF125-180N-C 180 [°] 3 [°] 38 [Nm]
SF125-90N-C 90 [°] 3 [°] 38 [Nm]
SF125N-C 0-180 [°] 180 [°] 38 [Nm]
SF125D4-C SF125-180D4-C 180 [°] 3 [°] 34 [Nm]
SF125-90D4-C 90 [°] 3 [°] 34 [Nm]
SF125D4-C 0-180 [°] 180 [°] 34 [Nm]
SF125D8-C SF125-180D8-C 180 [°] 3 [°] 32 [Nm]
SF125-90D8-C 90 [°] 3 [°] 32 [Nm]
SF125D8-C 0-180 [°] 180 [°] 32 [Nm]
SF125M-C SF125M-C -90 / 0 / +90 [°] 3 [°] 38 [Nm]
SF125MD4-C SF125MD4-C -90 / 0 / +90 [°] 3 [°] 34 [Nm]
SF125MD8-C SF125MD8-C -90 / 0 / +90 [°] 3 [°] 32 [Nm]
SF155N-C SF155-180N-C 180 [°] 3 [°] 62 [Nm]
SF155-180N-C 180 [°] 3 [°] 62 [Nm]
SF155-90N-C 90 [°] 3 [°] 62 [Nm]
SF155N-C 0-180 [°] 180 [°] 62 [Nm]
SF155D4-C SF155-180D4-C 180 [°] 3 [°] 58 [Nm]
SF155-180D4-C 180 [°] 3 [°] 58 [Nm]
SF155-90D4-C 90 [°] 3 [°] 58 [Nm]
SF155D4-C 0-180 [°] 180 [°] 58 [Nm]
SF155D8-C SF155-180D8-C 180 [°] 3 [°] 54 [Nm]
SF155-90D8-C 90 [°] 3 [°] 54 [Nm]
SF155D8-C 0-180 [°] 180 [°] 54 [Nm]
SF155M-C SF155M-C -90 / 0 / +90 [°] 3 [°] 62 [Nm]
SF155MD4-C SF155MD4-C -90 / 0 / +90 [°] 3 [°] 58 [Nm]
SF155MD4-C -90 / 0 / +90 [°] 3 [°] 58 [Nm]
SF155MD8-C SF155MD8-C -90 / 0 / +90 [°] 3 [°] 54 [Nm]
SF195N-C SF195-180N-C 180 [°] 3 [°] 130 [Nm]
SF195-90N-C 90 [°] 3 [°] 130 [Nm]
SF195N-C 0-180 [°] 180 [°] 130 [Nm]
SF195D4-C SF195-180D4-C 180 [°] 3 [°] 125 [Nm]
SF195-90D4-C 90 [°] 3 [°] 125 [Nm]
SF195D4-C 0-180 [°] 180 [°] 125 [Nm]
SF195D8-C SF195-180D8-C 180 [°] 3 [°] 120 [Nm]
SF195-90D8-C 90 [°] 3 [°] 120 [Nm]
SF195D8-C 0-180 [°] 180 [°] 120 [Nm]
SF195M-C SF195M-C -90 / 0 / +90 [°] 3 [°] 130 [Nm]
SF195MD4-C SF195MD4-C -90 / 0 / +90 [°] 3 [°] 125 [Nm]
SF195MD8-C SF195MD8-C -90 / 0 / +90 [°] 3 [°] 120 [Nm]
