Zwenkeenheden pneu

Terug

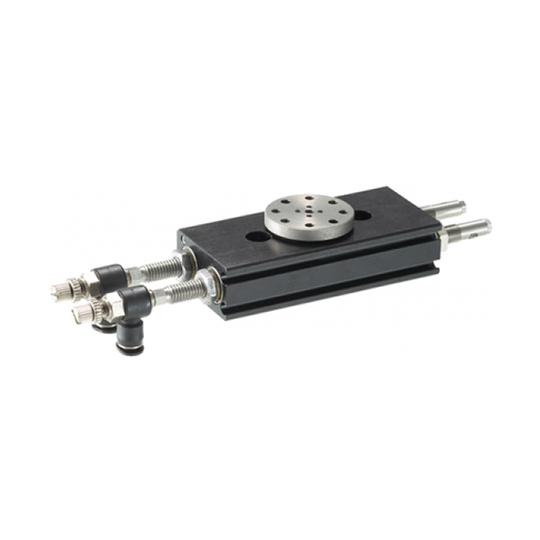

MSF Serie

-Zeer platte constructie

-Instelbare zwenkhoek

-3 montagevormen

-Pneumatiek-doorvoer mogelijk

-Geïntegreerde stootdempers

-Tot 10 miljoen slagen onderhoudsvrij

MSF34

Artikelcode	Download	Repetition accuracy +/-	Torque	Swivel angle
MSF34N-F001	PDF	0.07 [°]	0.4 [Nm]	90-180 [°]
MSF34S-F001	PDF	0.01 [°]	0.4 [Nm]	90-180 [°]
MSF34N-F002	PDF	0.07 [°]	0.4 [Nm]	90-180 [°]
MSF34S-F002	PDF	0.01 [°]	0.4 [Nm]	90-180 [°]
MSF34N-D2	PDF	0.07 [°]	0.3 [Nm]	90-180 [°]
MSF34S-D2	PDF	0.01 [°]	0.3 [Nm]	90-180 [°]

MSF40

Artikelcode	Download	Repetition accuracy +/-	Torque	Swivel angle
MSF40N-F001	PDF	0.07 [°]	0.7 [Nm]	90-180 [°]
MSF40S-F001	PDF	0.01 [°]	0.7 [Nm]	90-180 [°]
MSF40N-F002	PDF	0.07 [°]	0.7 [Nm]	90-180 [°]
MSF40S-F002	PDF	0.01 [°]	0.7 [Nm]	90-180 [°]
MSF40N-D2	PDF	0.07 [°]	0.6 [Nm]	90-180 [°]
MSF40S-D2	PDF	0.01 [°]	0.6 [Nm]	90-180 [°]

MSF44

Artikelcode	Download	Stroke per jaw	Repetition accuracy +/-	Torque	Swivel angle
MSF44N-F001	PDF	-	0.07 [°]	1.2 [Nm]	90-180 [°]
MSF44S-F001	PDF	-	0.01 [°]	1.2 [Nm]	90-180 [°]
MSF44N-F00	PDF	-	0.07 [°]	1.2 [Nm]	90-180 [°]
MSF44S-F002	PDF	-	0.01 [°]	1.2 [Nm]	90-180 [°]
MSF44N-D2	PDF	-	0.07 [°]	1 [Nm]	90-180 [°]
MSF44S-D2	PDF	1 [mm]	0.01 [°]	-	90-180 [°]
