Gatgrijpers

Voor informatie over dit product kan u hieronder op de lees meer knop klikken. Mocht u vragen hebben kan u altijd contact met ons opnemen per e-mail of telefoon.

Series

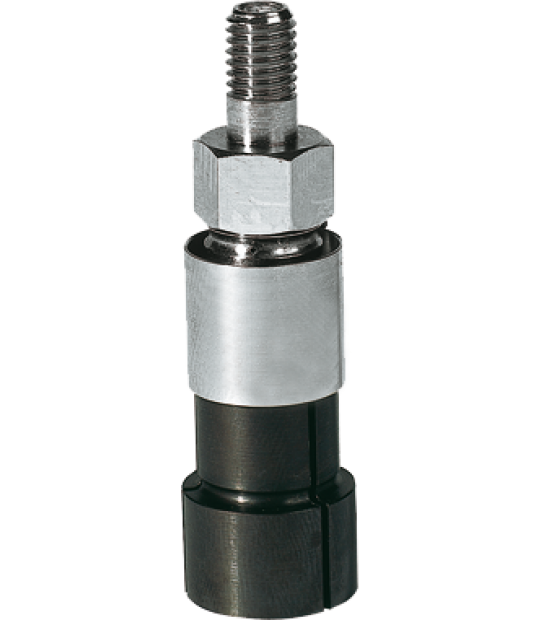

LGS Serie

LGS-serie

-Eenvoudig en voordelig

-Enkelwerkende cilinder

-Universele bekken

-Eenvoudig passend te maken

Overzicht

Hieronder vindt u meer specificaties

Type Bestel-code Total stroke in Ø Grip diameter min. Grip diameter max.
LG4-20 LG4-20 1 [mm] 4 [mm] -
LG4-20V 1 [mm] 4 [mm] -
LG20-30 LG20-30 1 [mm] 5 [mm] -
LG20-30V 1 [mm] 5 [mm] -
LG30-50 LG30-50 1 [mm] 6 [mm] -

Contact

Wilt u meer informatie van dit product? Wij sturen u dit op!

Ik wil meer informatie over "LGS Serie "
Of neem direct contact op:
Mierlo
+31 (0)492-665176
Zwolle
+31 (0)38-4541017
België
+32 (0)9-2779679

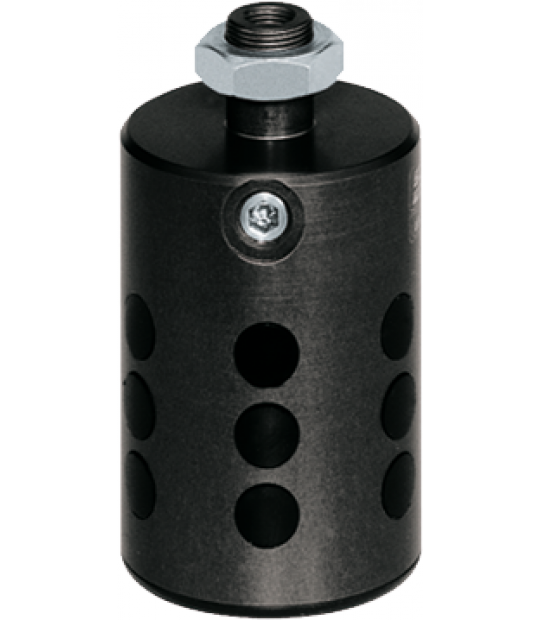

LGG Serie

LGG-serie

-Grote serie-variatie

-Enkelwerkend systeem

-Rubberen membraam

-Voorkomt beschadiging

Overzicht

Hieronder vindt u meer specificaties

Type Bestel-code Total stroke in Ø Clamping diameter d min. Gripping moment in opening
LG15-18 LG15-18 2.5 [mm] 15 [mm] -
LG18-22 LG18-22 4 [mm] 17.5 [mm] -
LG22-26 LG22-26 4 [mm] 21.5 [mm] -
LG26-30 LG26-30 4 [mm] 25.5 [mm] -
LG30-35 LG30-35 5 [mm] 29.5 [mm] -
LG35-39 LG35-39 4.5 [mm] 34.5 [mm] -
LG40-45 LG40-45 6.5 [mm] 39.5 [mm] -
LG46-51 LG46-51 6 [mm] 45.5 [mm] -
LG51-56 LG51-56 7 [mm] 50.5 [mm] -
LG56-62 LG56-62 7.5 [mm] 55.5 [mm] -
LG63-70 LG63-70 8 [mm] 62.5 [mm] -
LG71-80 LG71-80 10.5 [mm] 70.5 [mm] -
LG76-84 LG76-84 8.5 [mm] 75.5 [mm] -
LG81-90 LG81-90 11 [mm] 80.5 [mm] -
LG91-100 LG91-100 10 [mm] 90.5 [mm] -
LG100-110 LG100-110 11 [mm] 99.5 [mm] -
LG110-120 LG110-120 11 [mm] 109.5 [mm] -
LG120-135 LG120-135 16 [mm] 119.5 [mm] -

Contact

Wilt u meer informatie van dit product? Wij sturen u dit op!

Ik wil meer informatie over "LGG Serie"
Of neem direct contact op:
Mierlo
+31 (0)492-665176
Zwolle
+31 (0)38-4541017
België
+32 (0)9-2779679

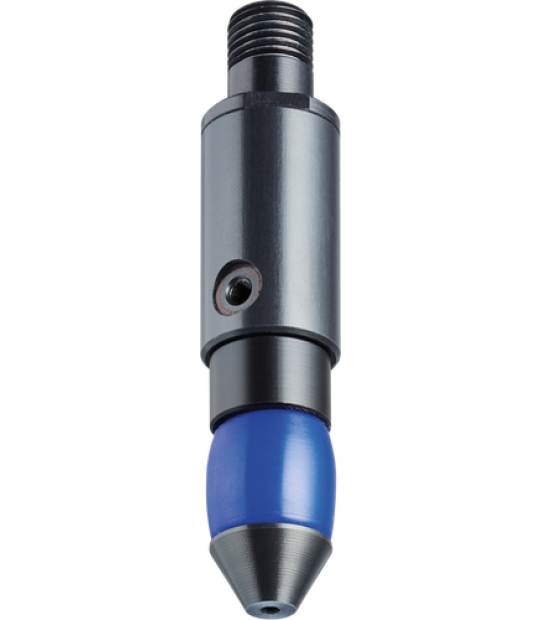

LG1000 Serie

LG1000-serie

-Zeer slank design

-Siliconen membraam

-Doorgaande boring optioneel

-Niet uitsluitend voor ronde gaten

Overzicht

Hieronder vindt u meer specificaties

Type Bestel-code Totale slag in Ø Grip diameter min. Slip kracht max.
LG1008 LG1008-01SI 2.5 [mm] 8 [mm] 53 [N]
LG1008-02SI 2.5 [mm] 8 [mm] 53 [N]
LG1010 LG1010-01SI 3 [mm] 10 [mm] 53 [N]
LG1010-02SI 3 [mm] 10 [mm] 53 [N]
LG1012 LG1012-01SI 3 [mm] 12.5 [mm] 58 [N]
LG1012-02SI 3 [mm] 12.5 [mm] 58 [N]
LG1015 LG1015-01SI 3.5 [mm] 15 [mm] 58 [N]
LG1015-02SI 3.5 [mm] 15 [mm] 58 [N]

Contact

Wilt u meer informatie van dit product? Wij sturen u dit op!

Ik wil meer informatie over "LG1000 Serie"
Of neem direct contact op:
Mierlo
+31 (0)492-665176
Zwolle
+31 (0)38-4541017
België
+32 (0)9-2779679
