Bekijk 3-punts Grijpers

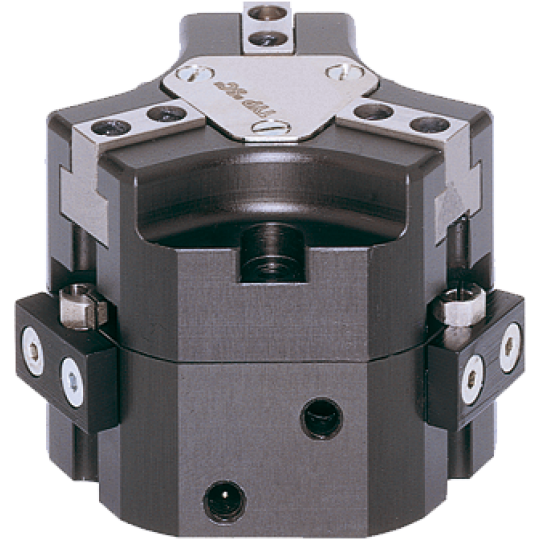

SOM BIL BAU GD303 SALL AIN V4

Terug

GD300

-Economische 3-punts-grijper

-Stabiele T-sleuf-geleiding

-Compact en sterk

-Tot 10 miljoen slagen onderhoudsvrij

GD303

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GD303N-C	PDF	3 [mm]	200 [N]	230 [N]
GD303NC-C	PDF	3 [mm]	270 [N]	-
GD303NO-C	PDF	3 [mm]	-	300 [N]

GD304

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GD304N-C	PDF	4 [mm]	450 [N]	500 [N]
GD304NC-C	PDF	4 [mm]	650 [N]	-
GD304NO-C	PDF	4 [mm]	-	700 [N]
GD304S-C	PDF	2 [mm]	1000 [N]	1100 [N]
GD304SC-C	PDF	2 [mm]	1400 [N]	-
GD304SO-C	PDF	2 [mm]	-	1500 [N]

GD306

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GD306N-C	PDF	6 [mm]	750 [N]	800 [N]
GD306NC-C	PDF	6 [mm]	1000 [N]	-
GD306NO-C	PDF	6 [mm]	-	1050 [N]
GD306S-C	PDF	3 [mm]	1600 [N]	1750 [N]
GD306SC-C	PDF	3 [mm]	2150 [N]	-
GD306SO-C	PDF	3 [mm]	-	2300 [N]

GD308

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GD308N-C	PDF	8 [mm]	1200 [N]	1300 [N]
GD308NC-C	PDF	8 [mm]	1800 [N]	-
GD308NO-C	PDF	8 [mm]	-	1900 [N]
GD308S-C	PDF	4 [mm]	2600 [N]	2800 [N]
GD308SC-C	PDF	4 [mm]	3800 [N]	-
GD308SO-C	PDF	4 [mm]	-	4000 [N]

GD310

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GD310N-C	PDF	10 [mm]	2000 [N]	2100 [N]
GD310NC-C	PDF	10 [mm]	2800 [N]	-
GD310NO-C	PDF	10 [mm]	-	2900 [N]
GD310S-C	PDF	5 [mm]	4400 [N]	4600 [N]
GD310SC-C	PDF	5 [mm]	6200 [N]	-
GD310SO-C	PDF	5 [mm]	-	6400 [N]

GD312

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GD312N-C	PDF	12 [mm]	3500 [N]	3600 [N]
GD312NC-C	PDF	12 [mm]	4150 [N]	-
GD312NO-C	PDF	12 [mm]	-	4250 [N]
GD312S-C	PDF	6 [mm]	7600 [N]	7850 [N]
GD312SC-C	PDF	6 [mm]	9000 [N]	-
GD312SO-C	PDF	6 [mm]	-	9250 [N]

GD316

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GD316N-C	PDF	16 [mm]	6500 [N]	6600 [N]
GD316NC-C	PDF	16 [mm]	8600 [N]	-
GD316NO-C	PDF	16 [mm]	-	8700 [N]
GD316S-C	PDF	8 [mm]	14000 [N]	14400 [N]
GD316SC-C	PDF	8 [mm]	18700 [N]	-
GD316SO-C	PDF	8 [mm]	-	19100 [N]

GD320

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GD320N-C	PDF	20 [mm]	8200 [N]	8450 [N]
GD320S-C	PDF	10 [mm]	18150 [N]	18700 [N]

GD330

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GD330N-C	PDF	30 [mm]	15300 [N]	15550 [N]
GD330S-C	PDF	15 [mm]	34150 [N]	34700 [N]
