3-punts Grijpers

Voor informatie over dit product kan u hieronder op de lees meer knop klikken. Mocht u vragen hebben kan u altijd contact met ons opnemen per e-mail of telefoon.

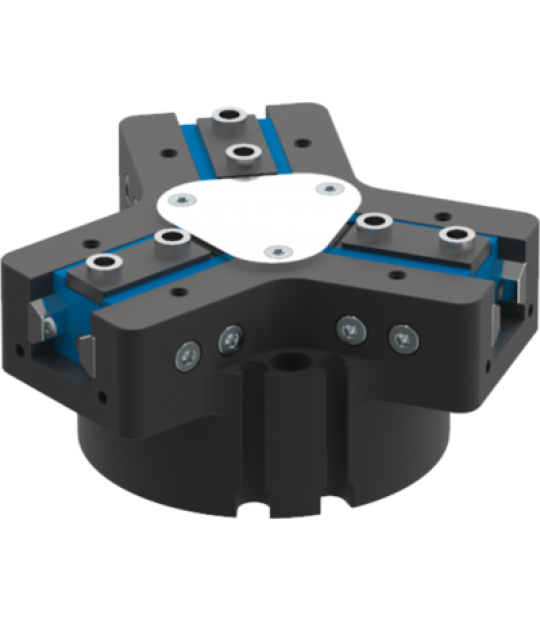

Series

GPD5000

GPD5000-serie

-Universele 3-punts-grijper

-30% grotere sluitkracht

-10% grotere belastbaarheid

-ip64-afgedicht (optie ip67)

-Tot 30 miljoen slagen onderhoudsvrij

Overzicht

Hieronder vindt u meer specificaties

Type Bestel-code Stroke per jaw Gripping force in opening Gripping force in closing
GPD5003 GPD5003N 2.5 [mm] 335 [N] 310 [N]
GPD5003NC 2.5 [mm] - 440 [N]
GPD5003NCP 2.5[mm] - 440 [N]
GPD5003NCT 2.5[mm] - 440 [N]
GPD5003NO 2.5[mm] 465[N] -
GPD5003NOP 2.5 [mm] 465 [N] -
GPD5003NOT 2.5 [mm] 465 [N] -
GPD5003NP 2.5 [mm] 335 [N] 310 [N]
GPD5003NT 2.5 [mm] 335 [N] 310 [N]
GPD5004 GPD5004N 4 [mm] 500 [N] 460 [N]
GPD5004NC 4 [mm] - 650 [N]
GPD5004NCP 4 [mm] - 650 [N]
GPD5004NCT 4 [mm] - 650 [N]
GPD5004NO 4 [mm] 690 [N] -
GPD5004NOP 4 [mm] 690 [N] -
GPD5004NOT 4 [mm] 690 [N] -
GPD5004NP 4 [mm] 500 [N] 460 [N]
GPD5004NT 4 [mm] 500 [N] 460 [N]
GPD5004S 2 [mm] 1100 [N] 1010 [N]
GPD5004SC 2 [mm] - 1430 [N]
GPD5004SCP 2 [mm] - 1430 [N]
GPD5004SCT 2 [mm] - 1430 [N]
GPD5004SO 2 [mm] 1520 [N] -
GPD5004SOP 2 [mm] 1520 [N] -
GPD5004SOT 2 [mm] 1520 [N] -
GPD5004SP 2 [mm] 1100 [N] 1010 [N]
GPD5004ST 2 [mm] 1100 [N] 1010 [N]
GPD5006 GPD5006ST 3 [mm] 1750 [N] 1620 [N]
GPD5006N 6 [mm] 800 [N] 740 [N]
GPD5006NC 6 [mm] - 1020 [N]
GPD5006NCP 6 [mm] - 1020 [N]
GPD5006NCT 6 [mm] - 1020 [N]
GPD5006NO 6 [mm] 1080 [N] -
GPD5006NOP 6 [mm] 1080 [N] -
GPD5006NOT 6 [mm] 1080 [N] -
GPD5006NP 6 [mm] 800 [N] 740 [N]
GPD5006NT 6 [mm] 800 [N] 740 [N]
GPD5006S 3 [mm] 1750 [N] 1620 [N]
GPD5006SC 3 [mm] - 2240 [N]
GPD5006SCP 3 [mm] - 2240 [N]
GPD5006SCT 3 [mm] - 2240 [N]
GPD5006SO 3 [mm] 2370 [N] -
GPD5006SOP 3 [mm] 2370 [N] -
GPD5006SOT 3 [mm] 2370 [N] -
GPD5006SP 3 [mm] 1750 [N] 1620 [N]
GPD5008 GPD5008N 8 [mm] 1340 [N] 1260 [N]
GPD5008NC 8 [mm] - 1690 [N]
GPD5008NCP 8 [mm] - 1690 [N]
GPD5008NCT 8 [mm] - 1690 [N]
GPD5008NO 8 [mm] 1770 [N] -
GPD5008NOP 8 [mm] 1770 [N] -
GPD5008NOT 8 [mm] 1770 [N] -
GPD5008NP 8 [mm] 1340 [N] 1260 [N]
GPD5008NT 8 [mm] 1340 [N] 1260 [N]
GPD5008S 4 [mm] 2960 [N] 2780 [N]
GPD5008SC 4 [mm] - 3730 [N]
GPD5008SCT 4 [mm] - 3730 [N]
GPD5008SO 4 [mm] 3910 [N] -
GPD5008SOP 4 [mm] 3910 [N] -
GPD5008SOT 4 [mm] 3910 [N] -
GPD5008SP 4 [mm] 2960 [N] 2780 [N]
GPD5008ST 4 [mm] 2960 [N] 2780 [N]
GPD5010 GPD5010N 10 [mm] 2400 [N] 2290 [N]
GPD5010NC 10 [mm] - 3140 [N]
GPD5010NCP 10 [mm] - 3140 [N]
GPD5010NCT 10 [mm] - 3140 [N]
GPD5010NO 10 [mm] 3250 [N] -
GPD5010NOP 10 [mm] 3250 [N] -
GPD5010NOT 10 [mm] 3250 [N] -
GPD5010NP 10 [mm] 2400 [N] 2290 [N]
GPD5010NT 10 [mm] 2400 [N] 2290 [N]
GPD5010S 5 [mm] 5280 [N] 5050 [N]
GPD5010SC 5 [mm] - 6930 [N]
GPD5010SCP 5 [mm] - 6930 [N]
GPD5010SCT 5 [mm] - 6930 [N]
GPD5010SO 5 [mm] 7160 [N] -
GPD5010SOP 5 [mm] 7160 [N] -
GPD5010SOT 5 [mm] 7160 [N] -
GPD5010SP 5 [mm] 5280 [N] 5050 [N]
GPD5010ST 5 [mm] 5280 [N] 5050 [N]
GPD5013 GPD5013N 13 [mm] 3910 [N] 3770 [N]
GPD5013NC 13 [mm] - 5060 [N]
GPD5013NCP 13 [mm] - 5060 [N]
GPD5013NCT 13 [mm] - 5060 [N]
GPD5013NO 13 [mm] 5200 [N]
GPD5013NOP 13 [mm] 5200 [N] -
GPD5013NOT 13 [mm] 5200 [N] -
GPD5013NP 13 [mm] 3910 [N] 3770 [N]
GPD5013NT 13 [mm] 3910 [N] 3770 [N]
GPD5013S 6 [mm] 8600 [N] 8310 [N]
GPD5013SC 6 [mm] - 11160 [N]
GPD5013SCP 6 [mm] - 11160 [N]
GPD5013SCT 6 [mm] - 11160 [N]
GPD5013SO 6 [mm] 11450 [N] -
GPD5013SOP 6 [mm] 11450 [N] -
GPD5013SOT 6 [mm] 11450 [N] -
GPD5013SP 6 [mm] 8600 [N] 8310 [N]
GPD5013ST 6 [mm] 8600 [N] 8310 [N]
GPD5016 GPD5016N 16 [mm] 7120 [N] 6870 [N]
GPD5016NC 16 [mm] - 9240 [N]
GPD5016NCP 16 [mm] - 9240 [N]
GPD5016NCT 16 [mm] - 9240 [N]
GPD5016NO 16 [mm] 9490 [N] -
GPD5016NOP 16 [mm] 9490 [N] -
GPD5016NOT 16 [mm] 9490 [N] -
GPD5016NP 16 [mm] 7120 [N] 6870 [N]
GPD5016NT 16 [mm] 7120 [N] 6870 [N]
GPD5016S 8 [mm] 15250 [N] 14700 [N]
GPD5016SC 8 [mm] - 19780 [N]
GPD5016SCP 8 [mm] - 19780 [N]
GPD5016SCT 8 [mm] - 19780 [N]
GPD5016SO 8 [mm] 20330 [N] -
GPD5016SOP 8 [mm] 20330 [N] -
GPD5016SOT 8 [mm] 20330 [N] -
GPD5016SP 8 [mm] 15250 [N] 14700 [N]
GPD5016ST 8 [mm] 15250 [N] 14700 [N]
GPD5025 GPD5025N 25 [mm] 8730 [N] 8430 [N]
GPD5025NC 25 [mm] - 11560 [N]
GPD5025NCP 25 [mm] - 11560 [N]
GPD5025NCT 25 [mm] - 11560 [N]
GPD5025NO 25 [mm] 11860 [N] -
GPD5025NOP 25 [mm] 11860 [N] -
GPD5025NOT 25 [mm] 11860 [N] -
GPD5025NP 25 [mm] 8730 [N] 8430 [N]
GPD5025NT 25 [mm] 8730 [N] 8430 [N]
GPD5025S 14 [mm] 16820 [N] 16240 [N]
GPD5025SC 14 [mm] - 22270 [N]
GPD5025SCP 14 [mm] - 22270 [N]
GPD5025SCT 14 [mm] - 22270 [N]
GPD5025SO 14 [mm] 22850 [N] -
GPD5025SOP 14 [mm] 22850 [N] -
GPD5025SOT 14 [mm] 22850 [N] -
GPD5025SP 14 [mm] 16820 [N] 16240 [N]
GPD5025ST 14 [mm] 16820 [N] 16240 [N]
GPD5030 GPD5030N 30 [mm] 12540 [N] 12130 [N]
GPD5030NC 30 [mm] - 16560 [N]
GPD5030NCP 30 [mm] - 16560 [N]
GPD5030NCT 30 [mm] - 16560 [N]
GPD5030NO 30 [mm] 16970 [N] -
GPD5030NOP 30 [mm] 16970 [N] -
GPD5030NOT 30 [mm] 16970 [N] -
GPD5030NP 30 [mm] 12540 [N] 12130 [N]
GPD5030NT 30 [mm] 12540 [N] 12130 [N]
GPD5030S 17 [mm] 23930 [N] 23150 [N]
GPD5030SC 17 [mm] - 31620 [N]
GPD5030SCP 17 [mm] - 31620 [N]
GPD5030SCT 17 [mm] - 31620 [N]
GPD5030SO 17 [mm] 32400 [N] -
GPD5030SOP 17 [mm] 32400 [N] -
GPD5030SOT 17 [mm] 32400 [N] -
GPD5030SP 17 [mm] 23930 [N] 23150 [N]
GPD5030ST 17 [mm] 23930 [N] 23150 [N]

Contact

Wilt u meer informatie van dit product? Wij sturen u dit op!

Ik wil meer informatie over "GPD5000"
Of neem direct contact op:
Mierlo
+31 (0)492-665176
Zwolle
+31 (0)38-4541017
België
+32 (0)9-2779679

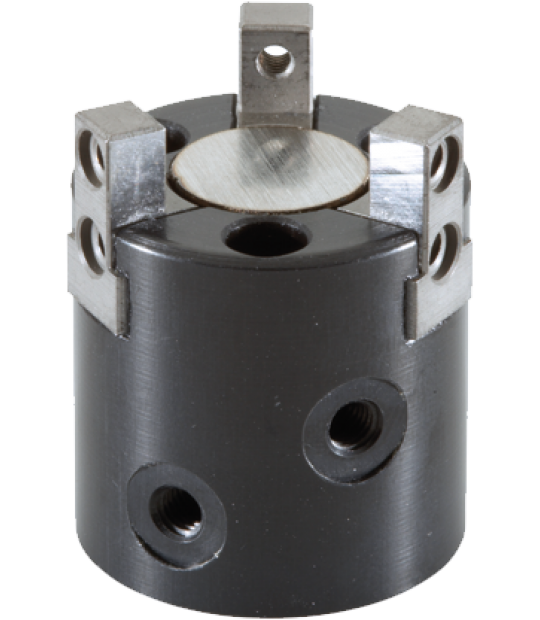

MGD800 Serie

MGD800-serie

-Compacte 3-punts-grijper

-Grotere sluitkracht

-Grotere belastbaarheid

-Tot 10 miljoen slagen onderhoudsvrij

Overzicht

Hieronder vindt u meer specificaties

Type Bestel-code Stroke per jaw Gripping force in opening Gripping force in closing
MGD801 MGD801N 1 [mm] 34 [N] 30 [N]
MGD802 MGD802N 2 [mm] 45 [N] 40 [N]
MGD803 MGD803N 3 [mm] 87 [N] 78 [N]
MGD803NC 3 [mm] - 110 [N]
MGD804 MGD804N 4 [mm] 140 [N] 125 [N]
MGD804NC 4 [mm] - 160 [N]
MGD806 MGD806N 6 [mm] 265 [N] 240 [N]
MGD806NC 6 [mm] - 295 [N]
MGD808 MGD808N 8 [mm] 450 [N] 415 [N]
MGD808NC 8 [mm] - 560 [N]
MGD810 MGD810N 10 [mm] 790 [N] 740 [N]
MGD810NC 10 [mm] - 920 [N]
MGD812 MGD812N 12 [mm] 1200 [N] 1130 [N]
MGD812NC 12 [mm] - 1420 [N]

Contact

Wilt u meer informatie van dit product? Wij sturen u dit op!

Ik wil meer informatie over "MGD800 Serie"
Of neem direct contact op:
Mierlo
+31 (0)492-665176
Zwolle
+31 (0)38-4541017
België
+32 (0)9-2779679

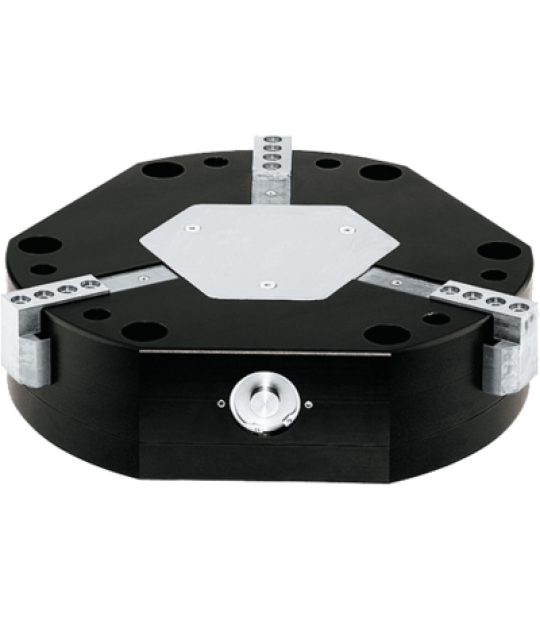

GD500 Serie

GD500-serie

-Grote slag 3-punts-grijper

-Stabiele T-sleuf-geleiding

-Compact en sterk

-Tot 10 miljoen slagen onderhoudsvrij

(mag opgenomen worden in het hoofdstuk 3-punts Grijpers)

(hoofdstuk 3-punts Grijpers, Grote-slag vervalt dus)

Overzicht

Hieronder vindt u meer specificaties

Type Bestel-code Stroke per jaw Gripping force in opening Gripping force in closing
GD530 GD530 30 [mm] 1300 [N] 1300 [N]
GD540 GD540 40 [mm] 2480 [N] 2480 [N]
GD560 GD560 60 [mm] 2480 [N] 2480 [N]

Contact

Wilt u meer informatie van dit product? Wij sturen u dit op!

Ik wil meer informatie over "GD500 Serie"
Of neem direct contact op:
Mierlo
+31 (0)492-665176
Zwolle
+31 (0)38-4541017
België
+32 (0)9-2779679

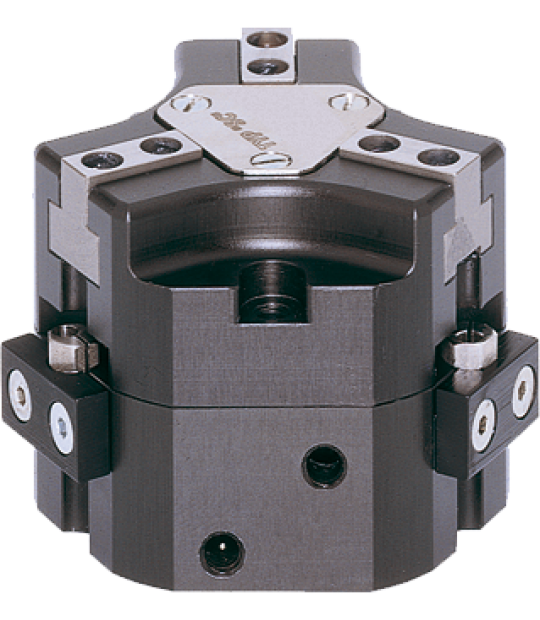

GD300 Serie

GD300-serie

-Economische 3-punts-grijper

-Stabiele T-sleuf-geleiding

-Compact en sterk

-Tot 10 miljoen slagen onderhoudsvrij

Overzicht

Hieronder vindt u meer specificaties

Type Bestel-code Stroke per jaw Gripping force in opening Gripping force in closing
GD303 GD303NO-C 3 [mm] 300 [N] -
GD303N-C 3 [mm] 230 [N] 200 [N]
GD303NC-C 3 [mm] - 270 [N]
GD304 GD304N-C 4 [mm] 500 [N] 450 [N]
GD304NC-C 4 [mm] - 650 [N]
GD304NO-C 4 [mm] 700 [N] -
GD304S-C 2 [mm] 1100 [N] 1000 [N]
GD304SC-C 2 [mm] - 1400 [N]
GD304SO-C 2 [mm] 1500 [N] -
GD306 GD306N-C 6 [mm] 800 [N] 750 [N]
GD306NC-C 6 [mm] - 1000 [N]
GD306NO-C 6 [mm] 1050 [N] -
GD306S-C 3 [mm] 1750 [N] 1600 [N]
GD306SC-C 3 [mm] - 2150 [N]
GD306SO-C 3 [mm] 2300 [N] -
GD308 GD308N-C 8 [mm] 1300 [N] 1200 [N]
GD308NC-C 8 [mm] - 1800 [N]
GD308NO-C 8 [mm] 1900 [N] -
GD308S-C 4 [mm] 2800 [N] 2600 [N]
GD308SC-C 4 [mm] - 3800 [N]
GD308SO-C 4 [mm] 4000 [N] -
GD310 GD310N-C 10 [mm] 2100 [N] 2000 [N]
GD310NC-C 10 [mm] - 2800 [N]
GD310NO-C 10 [mm] 2900 [N] -
GD310S-C 5 [mm] 4600 [N] 4400 [N]
GD310SC-C 5 [mm] - 6200 [N]
GD310SO-C 5 [mm] 6400 [N] -
GD312 GD312N-C 12 [mm] 3600 [N] 3500 [N]
GD312NC-C 12 [mm] - 4150 [N]
GD312NO-C 12 [mm] 4250 [N] -
GD312S-C 6 [mm] 7850 [N] 7600 [N]
GD312SC-C 6 [mm] - 9000 [N]
GD312SO-C 6 [mm] 9250 [N] -
GD316 GD316N-C 16 [mm] 6600 [N] 6600 [N]
GD316NC-C 16 [mm] - 8600 [N]
GD316NO-C 16 [mm] 8700 [N] -
GD316S-C 8 [mm] 14400 [N] 14000 [N]
GD316SC-C 8 [mm] - 18700 [N]
GD316SO-C 8 [mm] 19100 [N] -
GD320 GD320N-C 20 [mm] 8450 [N] 8200 [N]
GD320S-C 10 [mm] 18700 [N] 18150 [N]
GD330 GD330N-C 30 [mm] 15550 [N] 15300 [N]
GD330S-C 15 [mm] 34700 [N] 34150 [N]

Contact

Wilt u meer informatie van dit product? Wij sturen u dit op!

Ik wil meer informatie over "GD300 Serie"
Of neem direct contact op:
Mierlo
+31 (0)492-665176
Zwolle
+31 (0)38-4541017
België
+32 (0)9-2779679
