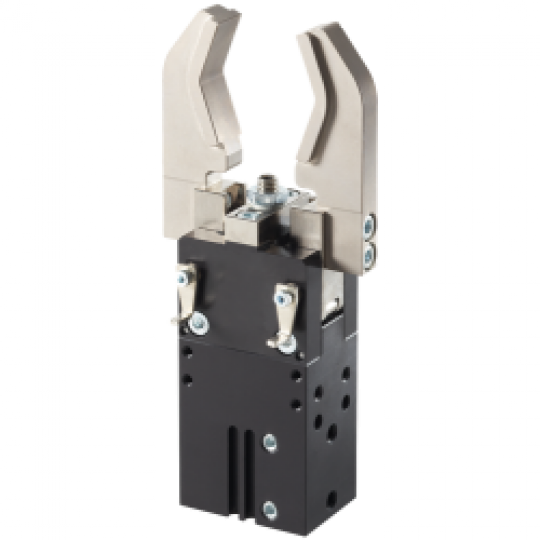

GK Serie

-De originele hoekgrijper

-Meer dan 20 jaar in productie

-Dubbelscharnier voor 2x 90° opening

-Tot 10 miljoen slagen onderhoudsvrij

GK15

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping moment secured by spring min
GK15N-B	PDF	90 [°]	70 [N]	-
GK15NC-B	PDF	90 [°]	100 [N]	0.4 [Nm]

GK20

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping moment secured by spring min
GK20N-B	PDF	90 [°]	150 [N]	-
GK20NC-B	PDF	90 [°]	210 [N]	1.2 [Nm]

GK25

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping moment secured by spring min
GK25N-B	PDF	90 [°]	440 [N]	-
GK25NC-B	PDF	90 [°]	610 [N]	4 [Nm]

GK35

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Holding force	Gripping moment secured by spring min
GK35N-B	PDF	90 [°]	950 [N]	-	-
GK35NC-B	PDF	90 [°]	-	1250 [N]	9 [Nm]

GK40

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping moment secured by spring min
GK40N-B	PDF	90 [°]	1400 [N]	-
GK40NC-B	PDF	90 [°]	1820 [N]	15 [Nm]

GK50

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening	Gripping moment secured by spring min
GK50N-B	PDF	90 [°]	3500 [N]	-	-
GK50NC-B	PDF	90 [°]	-	4250 [N]	33 [Nm]
