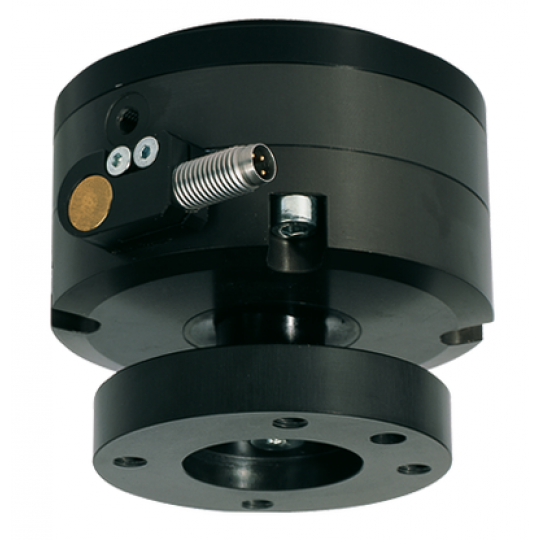

CSR Serie
-Eenvoudige crashbeveiliging
-Beveiliging naar alle richtingen
-Pneumatisch bekrachtigd en instelbaar
-Enkelwerkende cilinder
-Geïntegreerde sensor
-ISO-flens-aansluiting
CSR50
| Artikelcode | Download | Connecting flange according EN ISO 9409-1 | Recommended handling weight | Installation Height |
|---|---|---|---|---|
| CSR50 | TK50 | 6 [kg] | 71 [mm] |
CSR63
| Artikelcode | Download | Connecting flange according EN ISO 9409-1 | Recommended handling weight | Installation Height |
|---|---|---|---|---|
| CSR63 | TK63 | 12 [kg] | 78 [mm] |
CSR80
| Artikelcode | Download | Connecting flange according EN ISO 9409-1 | Recommended handling weight | Installation Height |
|---|---|---|---|---|
| CSR80 | TK80 | 35 [kg] | 78.5 [mm] |
CSR100
| Artikelcode | Download | Connecting flange according EN ISO 9409-1 | Recommended handling weight | Installation Height |
|---|---|---|---|---|
| CSR100 | TK100 | 60 [kg] | 97.5 [mm] |
CSR125
| Artikelcode | Download | Connecting flange according EN ISO 9409-1 | Recommended handling weight | Installation Height |
|---|---|---|---|---|
| CSR125 | TK125 | 100 [kg] | 136 [mm] |
CSR160
| Artikelcode | Download | Connecting flange according EN ISO 9409-1 | Recommended handling weight | Installation Height |
|---|---|---|---|---|
| CSR160 | TK160 | 150 [kg] | 161 [mm] |
